Roller Drive FR Series

The roller cam consists of an input cam shaft and a roller turret.
The roller cam is designed with rolling contact, featuring high rigidity, high speed, and outstanding durability.
Engagement between the roller and cam are preloaded to fully eliminate ultra-high precision feature.
Besides, with rolling contact to transmit kinetic energy, energy consumption during drive can be dramatically reduced. This enables the roller cam to achieve over 90% of transmission efficiency.

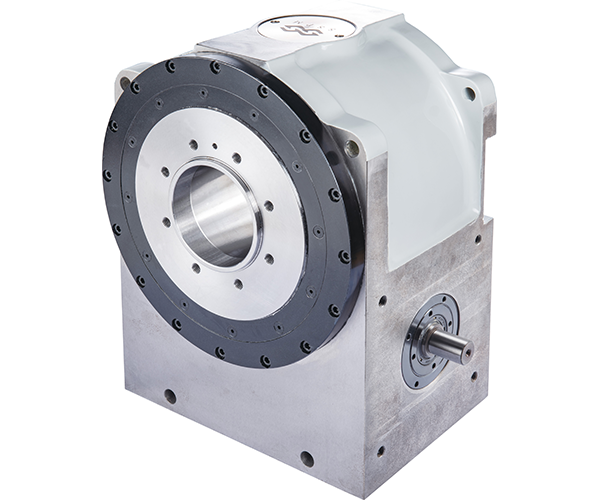

Grease Iubrication Type	Unit	RA-63	RA-80	RA-100
Ratio		20	20	20
Maximum Speed	rpm	3000	2500	2000
Permissible Speed	N.m	123	192	537
Postitioning Accuracy	arc-sec	60	40	40
Repeatability	arc-sec	±7	±5	±5
Concentricity of Table	mm	±0.005	±0.005	±0.005
Parallelism of Table	mm	±0.005	±0.005	±0.005
Weight	kg	6.3	12.5	23
Grease Iubrication Type	Unit	AR-63	AR-80	AR-100
Ratio		20	20	20
Maximum Speed	rpm	3000	3000	3000
Permissible Speed	N.m	152	237	661
Postitioning Accuracy	arc-sec	60	40	40
Repeatability	arc-sec	±7	±5	±5
Concentricity of Table	mm	±0.005	±0.005	±0.005
Parallelism of Table	mm	±0.005	±0.005	±0.005
Weight	kg	6.3	12.5	23
